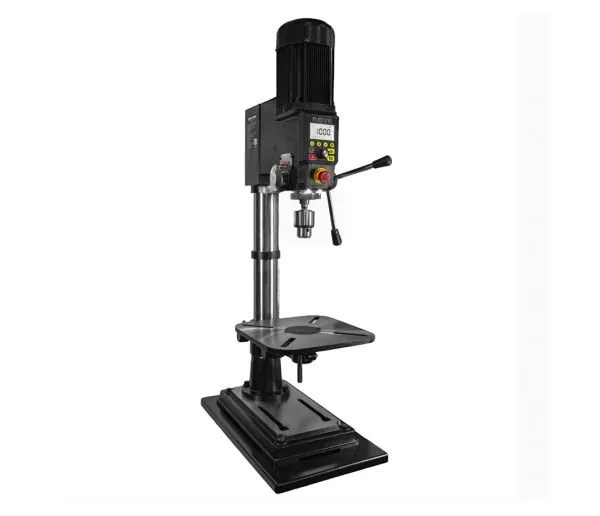

NOVA VIKING 16″ DVR BENCHTOP REFURBISHED DRILL PRESS (83700-R)

Product Description

NOVA VIKING 16″ DVR BENCHTOP REFURBISHED DRILL PRESS (83700-R) –

A quick, safe way to bore large holes in metal sheet or castings. Heavy-duty cast iron base and table offers plenty of stability and the open throat design allows for easy insertion of long workpieces. Built-in laser and light help locate center position quickly.

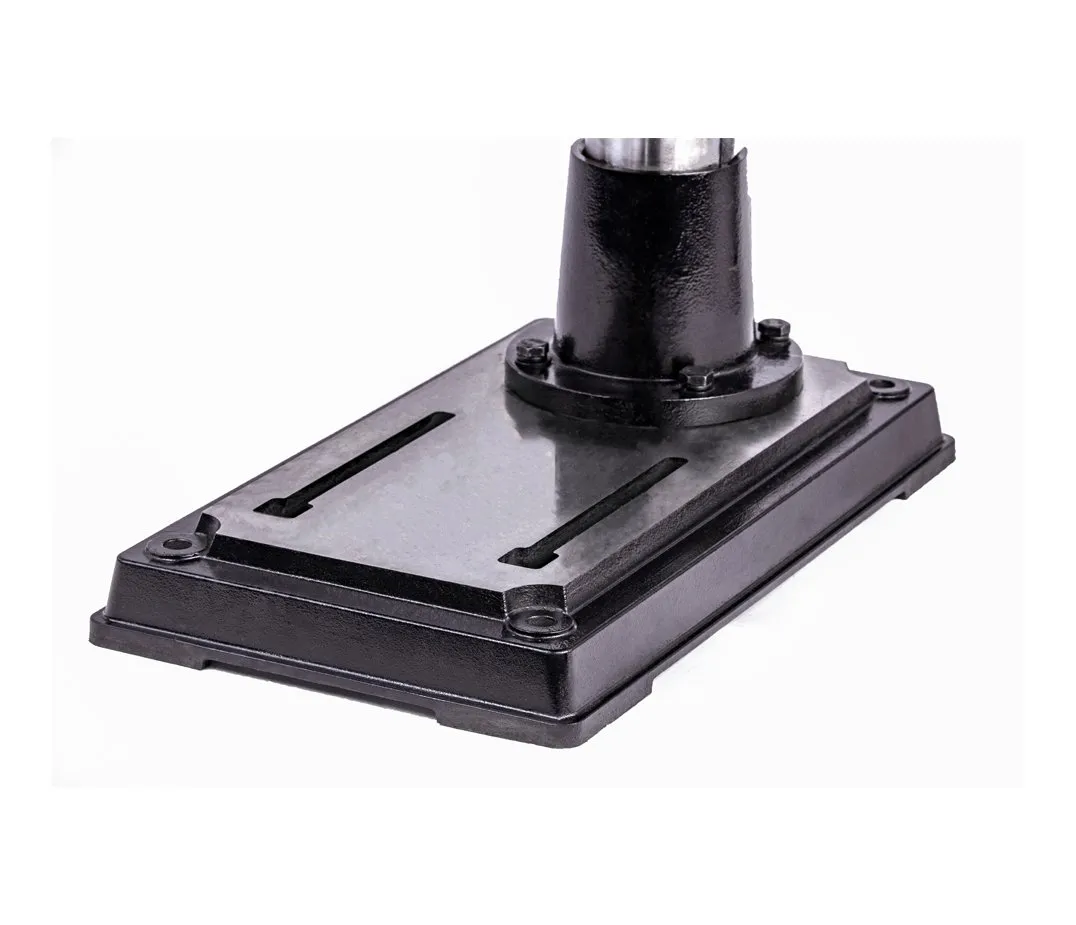

Heavy Duty Construction – Heavy-duty cast iron base with a full 16 inches of bench drilling capacity, plus an upgraded 4.5-inch stroke length for greater accuracy and clearance when necessary.

Variable speed settings from 150 to 5,000 revolutions per minute (RPM). This will allow you to perform a variety of drilling and cutting applications including large deep hole drilling, mortising, high speed sanding, and more.

	DIRECT DRIVE POWER AND CONSISTENT TORQUE	1HP DVR Smart Digital Motor powered by STRIATECH delivers correct speed and power to maintain optimal torque direct to the drill head – across the entire speed range. No belts or pulleys to cause vibration or power loss. A belt and pulley system absorb typically 20% of the motor power before it even gets to the tool. The DVR motor delivers constant torque with all materials.
	SMART DIGITAL MOTOR	Smart sensors interacting in a number of ways – safety, intelligence workshop assist, and performance
	BUILT IN LASER AND LIGHT	Quickly locate center position with the cross haired laser. Two powerful LED lights to keep your project well lit.(This feature not available in all markets.)
	CAST IRON WOODWORKING TABLE	Solid Cast Iron for maximum stability. Maximum flexibility and options. Woodworking design to provide maximum clamping and accessory options. 12 2/3″ x 12 2/3″ (320mm x 320mm) Tilting and Rotating
	ELECTRONIC VARIABLE SPEED	150 – 5,000 RPM (can be unlocked to go above 5,000 RPM); Versatile for a variety of projects – Large deep hole drilling, mortising, high speed sanding.
	FORWARD AND REVERSE	For LH drill bits, gives you more flexibility for projects.
	ELECTRONIC DEPTH STOP	Quickly and accurately automatically stops to the depth you program for your project. Precision drilling.

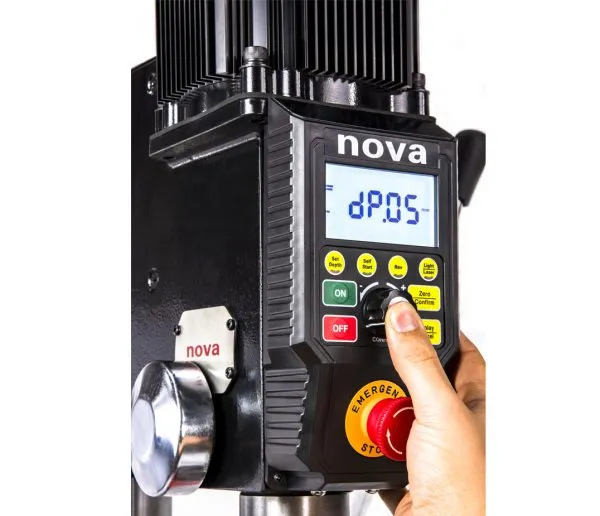

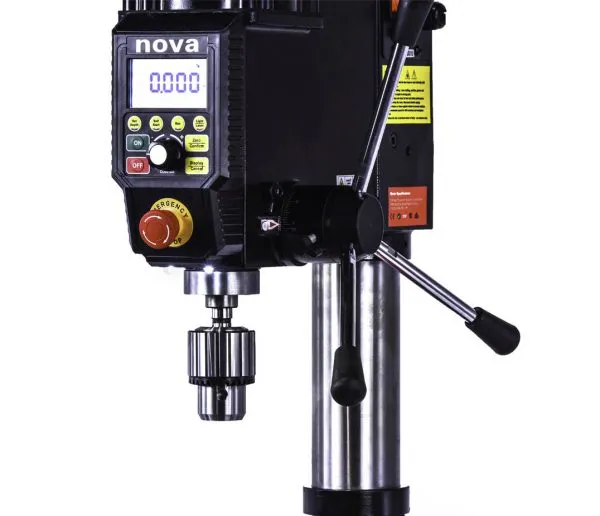

	DISPLAY	Large, easy to read display with choice of metric or imperial (fractions or decimal). Easy to switch between modes.
	SPLIT MOTOR (EXPOSED)	Easy access to motor. Much easier to get serviced for both customers and dealers.
	SELF START	Enables a one-handed drilling operation by automatically turning on and off.
	BRAKING	E-stop.
	SPECIFICATIONS	Variable Speed: 150 – 5,000 RPM Swing: 16” Stroke: 4.5” Spindle to Table: 12 2/3″ (320mm) Spindle to base: 22 2/3″ (575mm) Drill Chuck: 5/8” (1-16mm) Spindle Taper: 2MT Quill: 4.5” of quill travel in just 1 1/4 revolutions of the handle, which allows for far greater accuracy. Motor: DVR High Torque 1HP motor, Electronic Variable Speed. 1HP Direct Drive; Single Phase Input Supply.110V-220V, MAX 10A-15A, 50Hz/60HzWeight: 154lbs/68.85kgs

Additional Information

NOVA Viking Manual

Teknatool Distributor Store Guide for Viking

DVR Trifold brochure

Optional Accessory: Viking Telescoping Guard Accessory (83750)

Drill Press
5/8″ Drill chuck
DVR motor
Table
LED Lights and Laser
Manual
