NOVA ALL INSERT SKUS – CHUCK INSERTS/ADAPTOR COMPATIBILITY CHART

Product Description

• NOVA has a range of chucks along with inserts in order to fit the majority of lathes that are currently available on the market.
• The insert/adaptor versions of NOVA chucks all use the same insert/adaptor system to ensure maximum adaptability and flexibility for the user.

HOW DOES THE INSERT SYSTEM WORK?

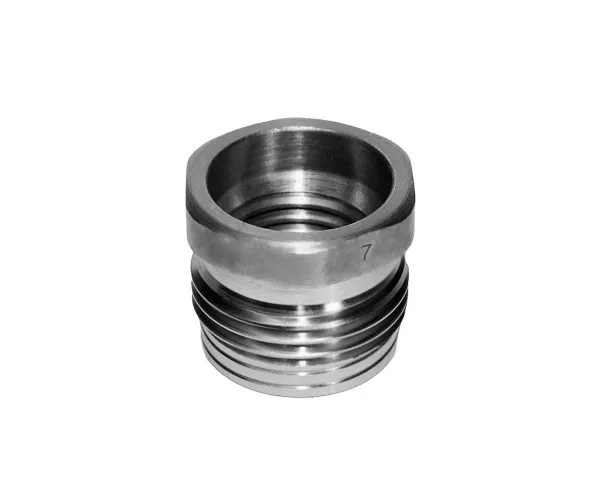

The insert fits into the back of the chuck and onto your lathe headstock spindle. The inserts are threaded both inside and out. The outside thread is made to fit into the NOVA Chucks. The inside thread comes in a variety of sizes. The size you need is determined by your lathe spindle thread size. See the insert thread chart below.

If you have reliable information for your spindle thread size but there is no match on the chart, you may have an unusual lathe that NOVA doesn’t have an adaptor for. You will need to purchase a blank chuck or a blank insert/adaptor and get it threaded to your requirements.

Some thread sizes we direct thread into the chuck body. Therefore, these don’t require insert adaptors. A directly threaded chuck body cannot be altered to an insert type body or another thread size once threaded. Be sure that your lathe thread size is not covered by the insert/adaptors first!

Terms:
BSF: British Standard Fine
BSW: British Standard Whitworth
RH: Right hand
LH: Left hand
TPI: Threads per inch
UN: Unified National Standard
UNC: Unified Coarse Standard
UNF: Unified Fine Standard
UNS: Unified Special

Chuck Insert/Adaptors

The thread sizes listed are the size which the adaptor converts to
(e.g. The thread size listed in the table should match the thread size on your lathe spindle.)
Click here if you don’t know your lathe spindle thread size.

Sizes listed below are subject to change.
Always best to check with your lathe manual and manufacturer.

SKU	Thread Diam.	Pitch	Thread Direction	Standard	Compatible Lathes	Set Screw
I2NS	M20	2	RH		Tyme Cub
I3NS	M20	1.5	RH		Electra Beckum, Multico Sumaro
I6NS	3/4″	Plain Bore				M6
I7NS	1 1/8″	8TPI		UN(NOT UNC)
I8NS	7/8″	12TPI	LH	NS
I9NS	3/4″	16TPI	RH		(with 6mm register)
IANS	3/4″	14TPI	RH	BSP	TL1000 (pre 1986)
IBNS	3/4″	14TPI	LH	BSP	TL1000 (pre 1986)
ICNS	1″	10TPI	RH	BSF	TL1000, Woodfast/Durden
IDNS	1″	8TPI	RH	UNC	Delta, Rockwell, Golding, General, NOVA Comet (North America) and Mercury lathes
IENS	1″	12TPI	RH	UNF	Myford ML8 Turnstyler
IHNS	3/4″	10TPI	RH	BSW	Rockwell Homecraft
IINS	M24	3	RH		B-Line Arundel K600/K450
IJNS	1 1/8″	12TPI	RH	BSW	Myford Mystro Masterlathe (New Zealand)
IKNS	M18	2.5	RH		Elu DB 180
ILNS	1 1/4″	8TPI	RH		NOVA Galaxi, NOVA Saturn, NOVA DVR 3000, NOVA XP, NOVA 1624 and 1624 II (North America) Laguna Revo	M6
IMNS	1″	10TPI	LH	BSF	TL1000 Woodfast/Durden
INNS	Blank (Can be threaded up to 28mm)
IONS	1 1/8″	7TPI	RH	BSW	Morton
IQNS	M30	3.5	RH		NOVA TL1500/3000/Comet (European & S. Hemisphere) Woodfast
IRNS	1″	8TPI	RH		Jet 1221 Lathe
ISNS	5/8″	Plain Bore			Designed Specifically for Shopsmith Pro V and Power Pro Machines	M6
ITNS	1″	8TPI	Dual Threaded LH & RH		NOVA Mercury Mini Lathe
IUNS	1 1/8″	12TPI	RH	UNF	Taiwanese lathes
IVNS	7/8″	14TPI	RH	NF
IYNS	1 1/4″	8TPI	RH		For lathes don’t have reverse turning ability
IWNS	M25	2	RH		Tyme Avon (’83 on) and Classic Tanner SD165, Selbix Springwood, Sorby, Cotech
IXNS	1″	8TPI	RH		Designed specifically for the NOVA Comet II Midi Lathe, features lock for the reverse function.	M6

Safety Advisory! Only use authentic NOVA accessories on your NOVA chuck. Using non genuine NOVA and copies of accessories could lead to operation and safety issues and will void our market leading warranty. NOVA accessories are designed for use only on NOVA Chucks. Do not use on any other chuck.
